Camera Digitizing System
Multiple pattems can be digitized in one shot and the software will automatically identify each patten,intemal lines, holes, notches and grain line, also the sewing line can be added easily just input the sewallowance.lt is possible to modify patterms as required before pattem scanning.This software can convert the digitized pieces directly to various CAD formats and standard AAMA DXF,in order to guarantee complete compatibility with other CAD system
How to Save the patterns
Save the patterns directly in the native format of your CAD system. It does not matter what CAD system you use, the photo digitizer is compatible with it all kind of CAD system. The system will remember the save settings (location, format, etc), so you can have the patterns available directly to you CAD system with one simple click.
The photo digitizer can automatically extract the pattern contour, using precise Bezier curves, can identify corners and mark it as reference points, can identify different type of notches (marked or cut), internal points and internal lines. By convention, the longest internal line found will be declared as grain axis. When the pattern are create inside the office, it is useful to respect some standard marking procedures, avoiding any manual adjustment of the digitizing results
How to control & Edit
Quick and easy inspect the result of the automatic digitizer using the Contour Play function. Measure distances and perimetral contour, check and adjust the internal elements or the shape of the curves if necessary, add or delete any element, input the piece name, all in one single window. Done! Easy to use zoom and navigate functions and the special magnifier viewer make your activity easy and efficient.

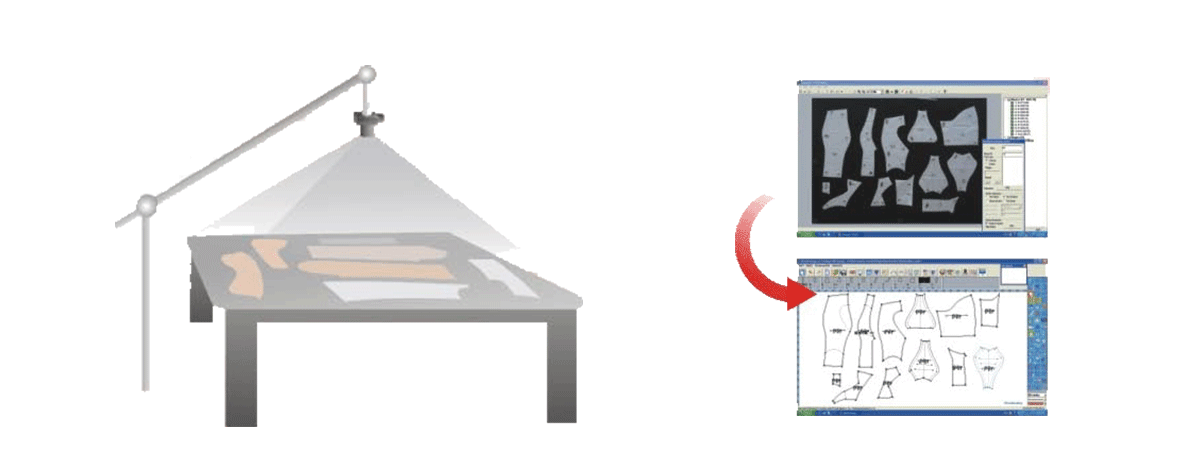

How to capture the image
Don't waste time placing the patterns on a special digitizing surface, fixing them with adhesive tape or other time-wasting methods. Just clean-up a bit your normal working table, leave the patterns there and go to computer. One simple click, and the camera automatically captures the picture and transfers it to the computer. The image is automatically processed and the patterns are extracted in just few seconds. A smart and simple calibration procedure is necessary only one time when you first install the system, offering a comfortable precision of less than 0.7 mm.
