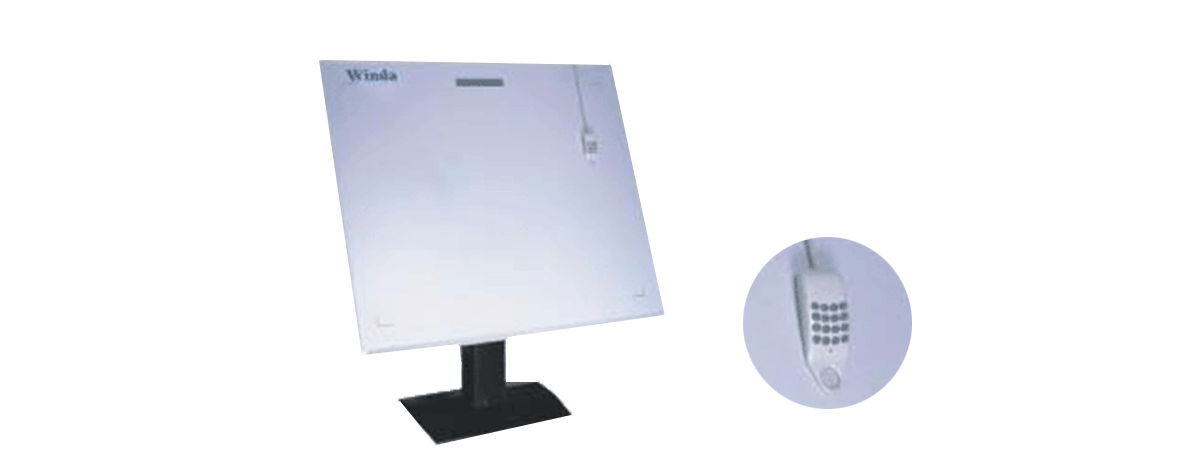

Digitizer

Product details

Winda Digitizer is very useful in all kinds of digital area, such as garment industry, fashion design, Mapping, Punching and Environment Protection. It allows saving most standard settings for more than 30 kinds of software in the option parameters and supports about 30 kinds of digital formats.

It is compatible with most popular software in the market, I. E. Auto CAD, Mapgis, Microstation, Supermap, Gerber, Lectra, Opitex, Pad, Investronic and so on.

Interface Details

 Hardware Interface

 RS-232 Serial Interface

 Baud Rate

 Up to 19,200

 Output Rate

 Up to 100pps

 Technology

 Electromagnetic

 Power Requirements

 200V-250V, 50HZ

Specifications

 Model

 Active Area(inch)

 Resolution

 Accuracy(mm)

 WD-A4460C

 44×60(AOO)

 2540LPl

 0.20

 WD-A3648C

 48×36(AO)

 2540LPl

 0.20

 WD-A3648S

 48×36(AO)

 2540LPl

 0.127

 WD-A2436C

 36×24(A1)

 2540LPl

 0.20

 WD-A2436S

 36×24(A1)

 2540LPl

 0.127

 WD-A1824C

 24×18(A2)

 2540LPl

 0.25

 WD-A3DTAB

 24×18(A2)

 2540LPl

  0.25
