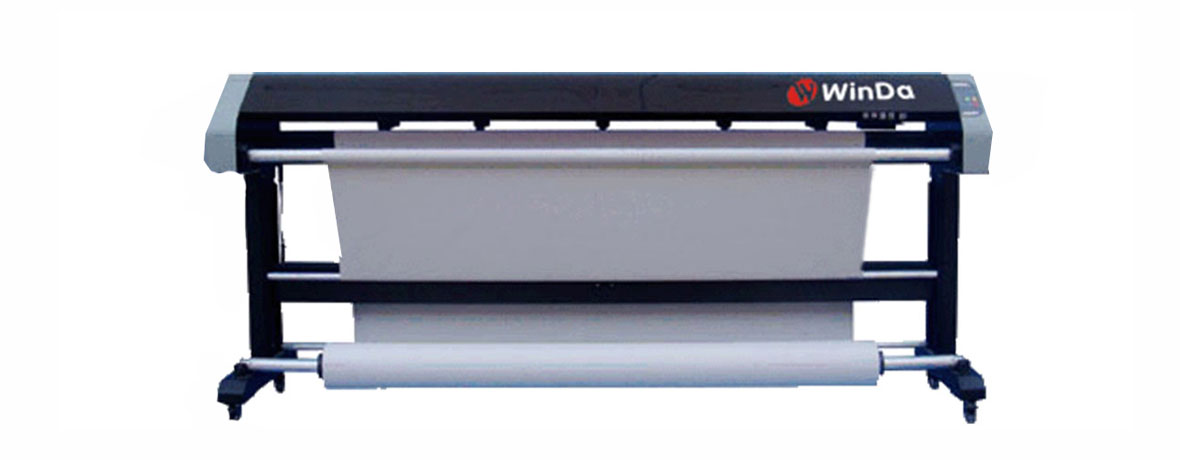

Winda High Speed Inkjet Plotter

Technical Features

  • Lowest operational cost and highest troughput.
  • More production: Plot more square/hour, print highly detailed or annotated markers with no degradation in speed.
  • Good print quality, resolution from 600 d.p.i. Best mode to 300 d.p.i. Draft mode, line thickness settings to help manage ink costs.
  • Overnight printing; Print on a variety of media.Works with a wide variety of CAD systems.
  • Lowest ink cost, Uses widely available HP ink cartridges.
  • Operation is so easy, only one operator is required, the key-board design make rapid setting, rapid ink replacement.
  • Space-saving, Light-weight can easy to move the machine; Front-floor load minimizes space requirements.



 WD JET-170

 WD JET-190

 WD JET-220

 Ink Qua

 1,2 or 4

 1,2 or 4

 1,2 or 4

 Plot width

 1.7m(67") 1.65m(65")

 1.9m(74.8") 1.85m(72.8")

 2.2m(86.6") 2.15m(84.6")

 Paper Width





 40;80;160sqm /hour

 45;90;180sqm /hour

 50;100;200sqm /hour

 Ink head

 HP thermal inkjet head (600dpi)


 300~600DPI Save-ink mode is optional.

 Line quality

 Precision, smoothly and no gap

 Max. Weight of Roll


 Paper thickness


 Orienting model

 Light Curtains



 Feeding system

 3000m accurate paper feeding by digital encoder system

 Receiving system

 Auto-receiving or without receiver


 USB 2.0 / Serial port

 Operated Keypad

 Digital touchpad, easy and use long time


 Alternating current 220V/110V; 50Hz/60Hz

 Working environment

 5~50C° ; 0%~95%


 According to Ui1950

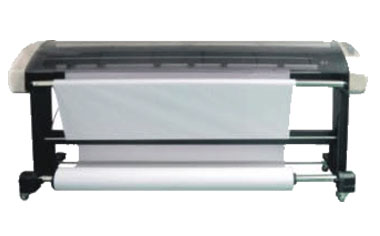

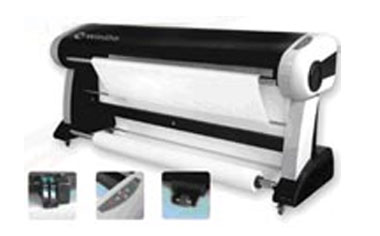

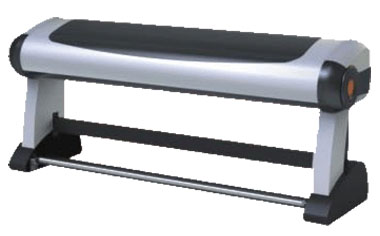

Related images
