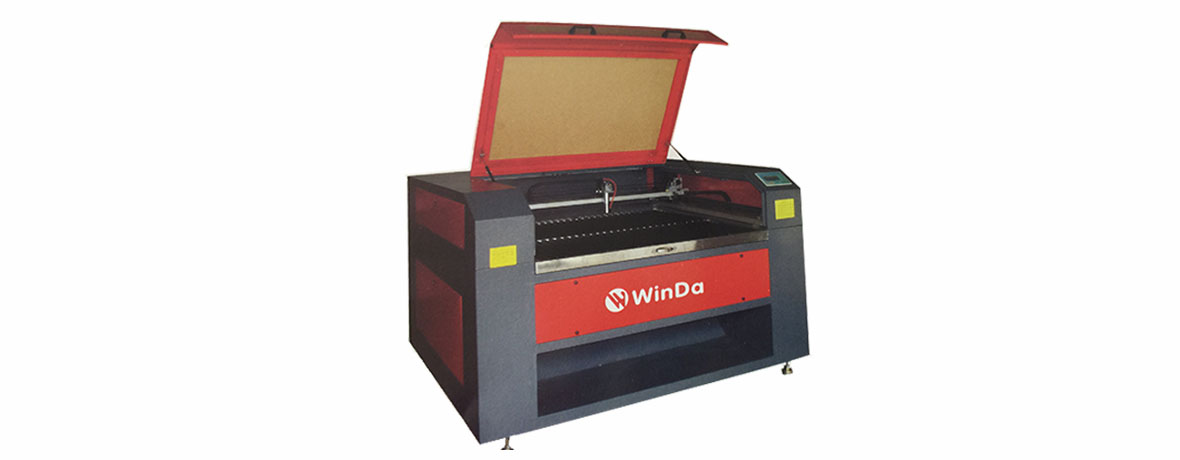

Winda Laser Cutting Machine

Product details

Garments, shoes, bags and luggage, computerized embroidery and clipping, template cutting, toys, furniture, advertisement deccrationm, handicraft, packaging, printing and so on.

Winda laser and engraving machine is widely used in Garments, shoes, bags and luggage, computerized embroidery and clipping, template cutting, toys, furniture, advertisement decoration, handicraft, packaging, printing and so on.

Technical Features

  • The outside sliding guide ensures fast processing speed, which is especially suitable for the garment and leather industries.
  • Being integrated with more concise frame, this machine is more economical but still has the same excellent cutting and engraving effects.
  • Our three unique protection functions, i.e. ant interference function, water-protective function and power cut-off function ensure longer working life, stability and effectiveness.
  • The stainless steel honeycomb platform we adopt, which is breakage-proof, ensures stable focus distance thus good cutting and engraving quality.
  • Original Singapore imported lens with molybdenum base makes the equipment produce smaller facula and stronger cutting force, greatly improving working efficiency and reducing cost.
  • Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipments manufacturing industry for years, extending the life of the laser tube.
  • This machine uses USB port to transmit data, equipped with large-capacity internal memory, improving working speed and efficiency greatly.

Specifications

 Model

 WD T0906

 WD T1080

 WD T1280

 WD T1610

 Processing Area

 900*600mm

 1000*800mm

 1200*800mm

 1600*1000mm

 Max. cutting speed

 24000mm/min

 Max. engraving speed

 40000mm/min

 Laser power

 60W/80W/100W/135W

 Resolution ratio

 0.0064mm

 Min. shaping character

 Chinese character:2*2mm Letter:1*1mm

 Location precision

 < 0.01mm

 Power supply

 AC220V±10%, 50HZ

 Gross power

 1250W
